Flavel FLU150AP FZU190AP Integrated Fridge & Freezer Door Hinges, Original Hettich Components, Top & Bottom Hinges

Flavel built under integrated Fridge & Freezer Door Hinges, Sold In Pairs, Top & Bottom Hinges*

Pair of fridge hinges to fit integrated, built under and built in fridge & freezer. If your integrated fridge door is not closing properly then it will almost certainly need two new hinges, it is good practice to change both hinges at the same time because if one has failed, then the other is usually weakened and prone to failure shortly after. TDSpares only supply the exact same original factory fitted hinges that were on your appliance when you bought it. So, you can have complete confidence in buying from us

Fits models:

FLAVEL FLU150AP 7248741919, FZU190AP 7248541919 Freezer

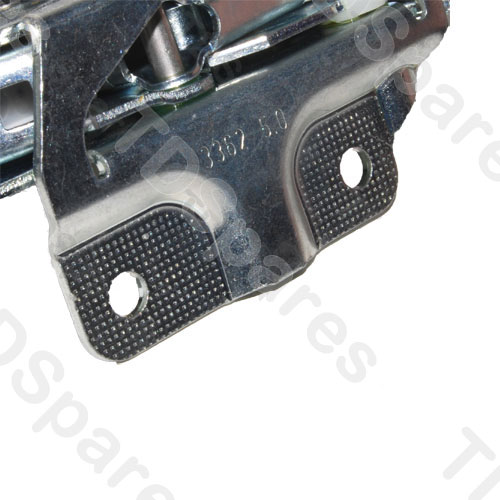

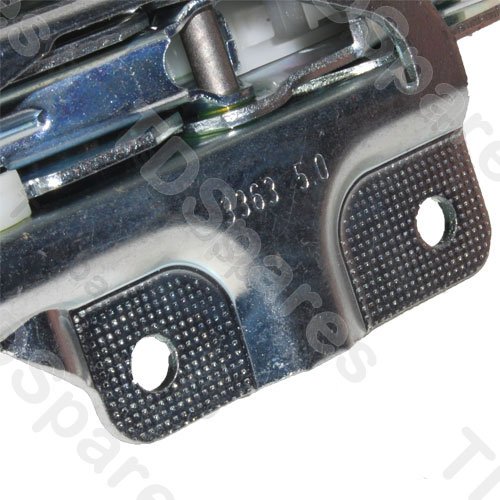

• Original Hettich Components, *Inside stamp 3704 5.0 on both, Outside stamps 3363 5.0 on one & 3362 5.0 on the other, seen with decor door removed and 41.5 on both, seen with hinges removed from appliance.

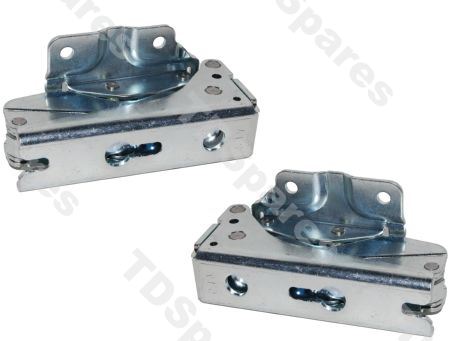

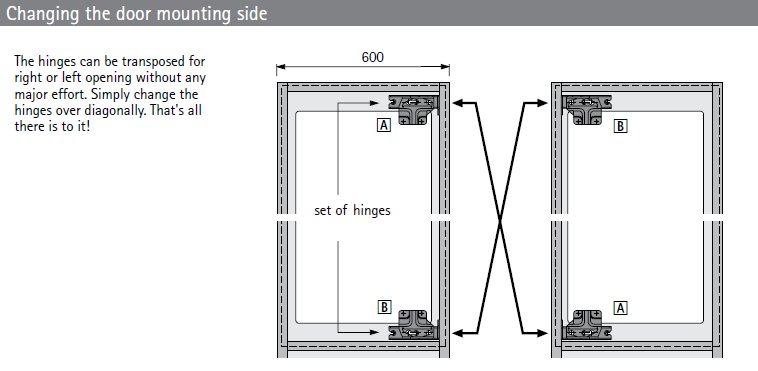

• Sold In Pairs Top & Bottom Hinges Supplied - For Right OR Left Hanging Doors.
• It is recommended that both hinges are changed at the same time, if one has failed, then the other is usually weakened and prone to failure shortly after.
• A tool for removing the Torx 'star' style screws (where fitted) can also be found here.
• *IMPORTANT please compare your original hinge numbers with all of the above. Please see alternatives below if you require the Ingol Coni Technic type hinges.


 Original Hettich Germany

If you are unsure about compatibility, then please contact us and provide your full make & model number (usually found on your instruction book or behind one of the salad boxes) also, the numbers printed inside and outside of your hinges and we will be happy to check for you. *TIP - a good idea is to take a snapshot of your appliance's rating plate with your digital camera or smartphone and send it to us using the attachment feature on the contact form. This may help speed up the process of identifying the correct parts. Please try and send a sharp /in focus image!
