Bosch, Neff & Siemens Integrated Fridge & Freezer Door Hinges, Sold In Pairs, Original Hettich Components, Top & Bottom Hinges
Integrated Fridge / Freezer Door Hinge Kit - WITH SHORT MOUNTING BACKPLATE*

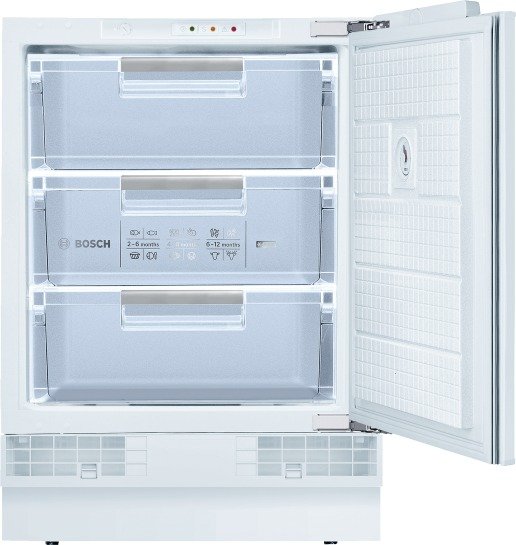

BOSCH GUD15A50GB/01, GUD15A50GB/02, GUD15A50GB/03
Pair of fridge hinges to fit integrated, built under and built in fridge and freezer. If your integrated fridge door is not closing properly then it will almost certainly need two new hinges, it is good practice to change both hinges at the same time because if one has failed, then the other is usually weakened and prone to failure shortly after. TDSpares only supply the exact same original factory fitted hinges that were on your appliance when you bought it. So, you can have complete confidence in buying from us.

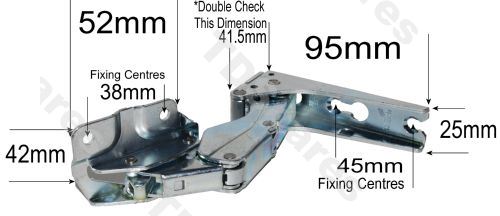

- Original Hettich Components, *Inside stamp 3704 5.0 on both, Outside stamps 3363 5.0 on one & 3362 5.0 on the other, and 41.5 on both ends.

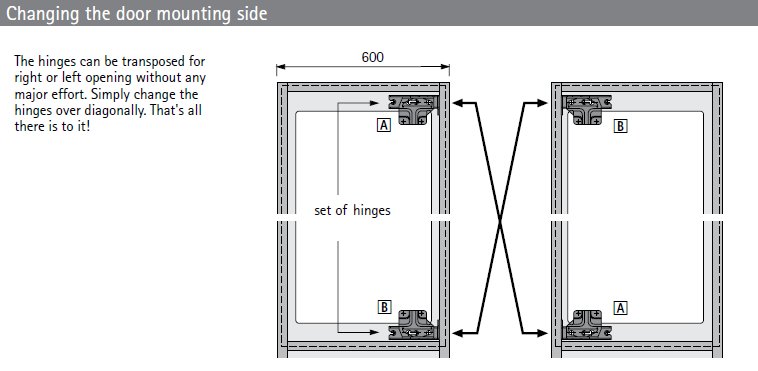

- Sold In Pairs Top & Bottom Hinges Supplied - For Right OR Left Hanging Doors. It is recommended that both hinges are changed at the same time, if one has failed, then the other is usually weakened and prone to failure shortly after.
- Please compare your original hinges with all of the images and numbers above, if you are still unsure about compatibility, then please contact us and we will be happy to check for you.
- These are the original factory fitted components and would cost you £45.00 each from Bosch. Please note however that these do not come in Bosch packaging.
- *Please compare your old hinges with all of the above images as some Bosch models were fitted with alternative style hinges with slightly taller mounting plates- please click on the 'Related Products' tab above to see alternatives.
- A tool for removing the Torx 'star' style screws (where fitted) can also be found here.
Supplied by HETTICH Germany
BOSCH GUD15A50GB/01, GUD15A50GB/02, GUD15A50GB/03
If you are unsure about compatibility, then please contact us and provide your full make & model number (usually found on your instruction book or behind one of the salad boxes) also, the numbers printed inside and outside of your hinges and we will be happy to check for you. *TIP - a good idea is to take a snapshot of your appliance's rating plate with your digital camera or smartphone and send it to us using the attachment feature on the contact form. This may help speed up the process of identifying the correct parts. Please try and send a sharp /in focus image!
